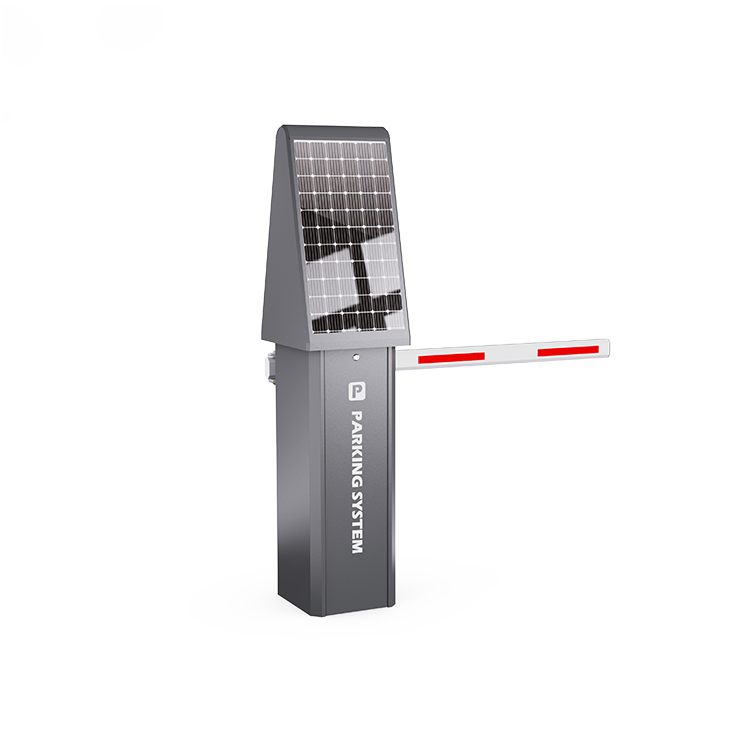

Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection
  • Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection
  • Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection
Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection

Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection

محل منبع شنژن ، چین.
نام تجاری SINOMATIC
گواهی CE/ ISO
شماره مدل DZ-2339
جزئیات محصول
انتشار دستی پیشرفته:
بله
خدمت:
OEM/ODM موجود است
طول بازو:
Max. حداکثر 6 meter 6 متر
وزن خالص:
حدود 70 کیلوگرم
چرخه وظیفه:
100 ٪
مواد مسکن:
ورق فولادی 2.0 میلی متری نورد سرد
طول بوم:
حداکثر 6 متر
دمای کار:
-35 ℃+ 65
ماده بازو:
آلیاژ آلومینیوم / فیبر کربن
کاربرد:
منطقه جریان ترافیک بیش از اندازه ، محلول ترانزیت ، در فضای باز ، محلول عوارض ، محلول پارکینگ
نیروی حرکتی:
160W
استفاده:
ایمنی ترافیک جاده ای
برجسته کردن:

IP54 Protection Automatic Barrier Gate,Solar Powered Boom Barrier Gate,High Precision Vehicle Detection Vehicle Barrier Gate

,

Solar Powered Boom Barrier Gate

,

High Precision Vehicle Detection Vehicle Barrier Gate

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
سفارش نمونه پذیرفته شده است
قیمت
negotiable
جزئیات بسته بندی
کارتن/جعبه تخته سه لا/پالت
زمان تحویل
5-10 روز کاری پس از دریافت دریافت
شرایط پرداخت
T/T ، Western Union ، MoneyGram
قابلیت ارائه
10،000 کامپیوتر در هر ماه
توضیحات محصول
Solar Powered Automatic Barrier Gate with 100% Duty Cycle
High Precision Vehicle Detection and Robust Construction
All-in-One Solar Powered Barrier Gate with maximum arm length of 6m for comprehensive vehicle access control solutions.
Product Overview
Our solar-powered barrier gate combines advanced technology with environmental sustainability, delivering a reliable and cost-effective access control solution for diverse applications worldwide.
Key Features
  • Solar-Powered Efficiency: High-quality 24V photovoltaic solar panels fully charge the battery in 5 hours of sunlight. Operates up to 10,000 cycles without sunlight, ideal for remote locations.
  • High-Precision Detection: Integrated ground-sensing coils and infrared sensors provide <1 second response time for all vehicle sizes.
  • Durable Construction: High-strength steel with anti-rust coatings withstands extreme temperatures (-35℃ to 75℃).
  • Simple Installation: No complex wiring required. Compatible with asphalt, concrete, and gravel surfaces.
  • Advanced Safety: Includes infrared anti-pinch sensors, pressure-wave anti-impact devices, and anti-tampering alarm.
Applications
Commercial parking lots
Residential parking areas
Industrial parks
Event venues
Rural communities
Remote locations
Customization Options
Barrier arm length customizable up to 6 meters for large vehicles. Control system integrates with existing security/access control software for seamless operation.
Quality Assurance
All products undergo rigorous testing to meet international standards. Includes comprehensive after-sales service with technical support, spare parts, and maintenance.
Technical Specifications
Material Steel
Motor DC Brushless
Running Speed 1.2s-3s, 2.5s-6s (adjustable)
Motor No-load speed 1850r/min
Protection Class IP54
Rated Power 160W
Input Voltage DC 24V, AC220V OR 110V
Working temperature -35℃~75℃
Package size 120*55*50 cm
Package weight 70kg
Solar Powered Automatic Barrier Gate with IP54 Protection and High Precision Vehicle Detection 0
